Special Engine and Body Conversions.

As with more things in life, some owners like to modify or personalise their Montecarlo or Scorpion. Over the years I got to see some very neat and technically well developed modifications. In the case of engine upgrades, these projects also have modified braking and road holding.

Please note that most of these modifications are not a matter of days but realised over years and are ongoing projects!

You will also find some conversions in Private Specials, Racers & Replicas  and in Private Racing versions  also accessible from:

Content Special



Index Conversions

THE BASICS

(S1) Montecarlo, early 1976  (S1) Montecarlo, UK (from April 1977) and some European countries
(S2) Montecarlo, UK and Europe 1980 Scorpion, early 1976 Scorpion, model 1977 (from Nov. 1976)



(S1) Montecarlo (S2) Montecarlo Scorpion (1800cc)



UPGRADING

What do some owners want:

More power:

airfilter, exhaust system, desmog tuned standard engine other engine
Better looks: striping, non standard colours body kits, wheels modify to other model



Some alternative air filters for the stock carburettor

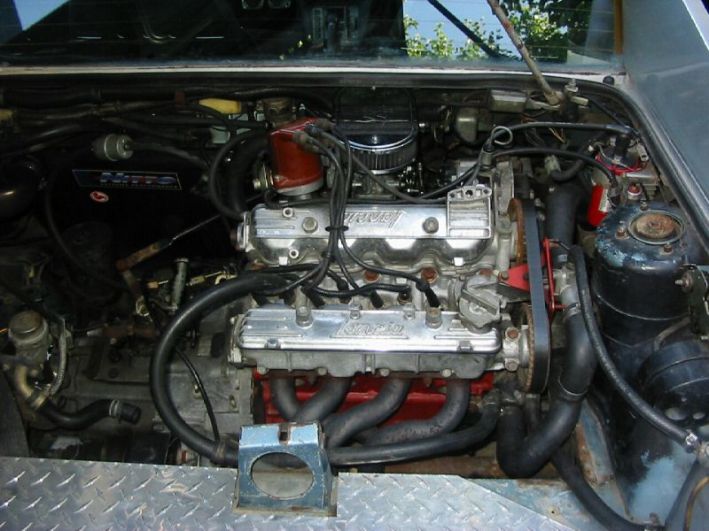

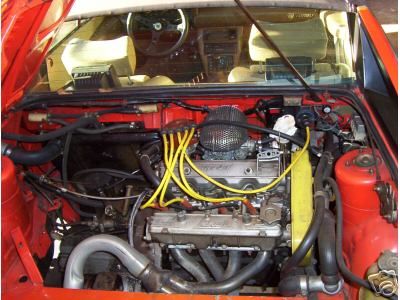

Scorpion  #252 Scorpion  #846 Scorpion  #1400



                        Index Conversion pages:

Twin carburettors
Fuel Injection
Turbo
Beta EFI engine
Beta Volumex engine

Montecarlo -  Delta turbo

NL, DE - NOR, USA, UK

Scorpion - Thema turbo

USA

Montecarlo -  Thema 8.32

S, BE
Scorpion -  Thesis V6 USA

Montecarlo -  Alfa V6

UK

Other non-Lancia engines

Fiat, Toyota V6, Electric


Body conversions

UK, BE, F, CH, USA, JP, ITA

Complete projects

USA - UK Scorpion to 037
Montecarlo -  Innovations NZ - AUS



Back to Content Special

Twin carburettors

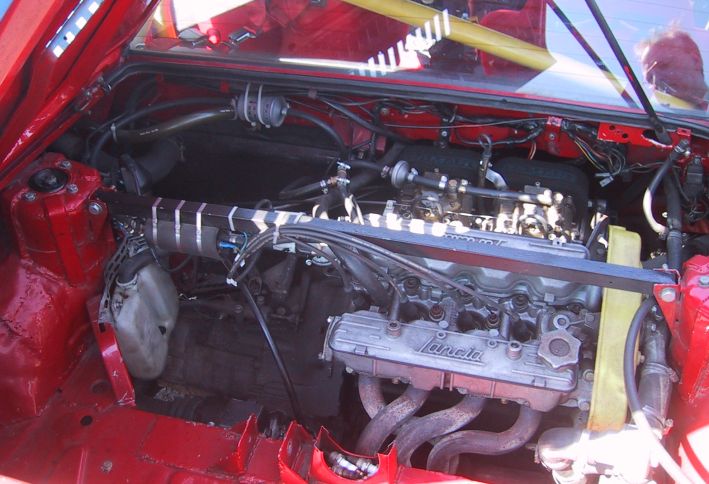

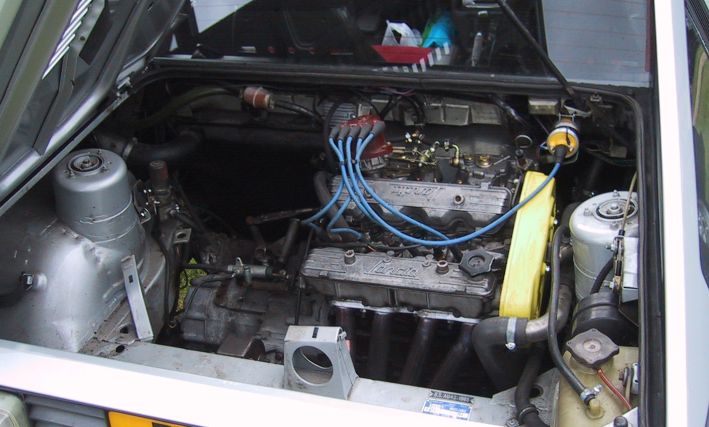

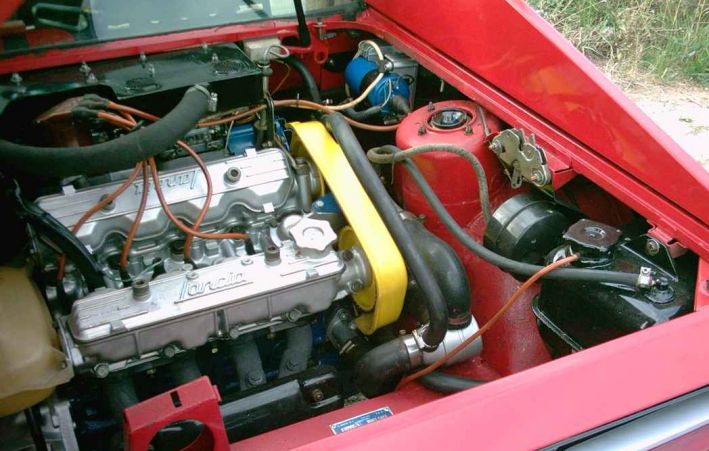

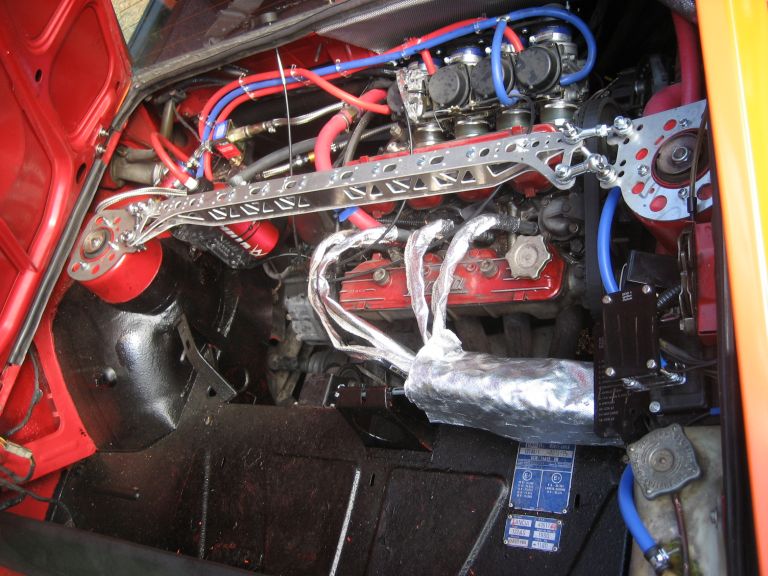

S1, #2466, 2006 S1, #2864, 2005 S1, #3313, 2006   S1, #3135, 2008

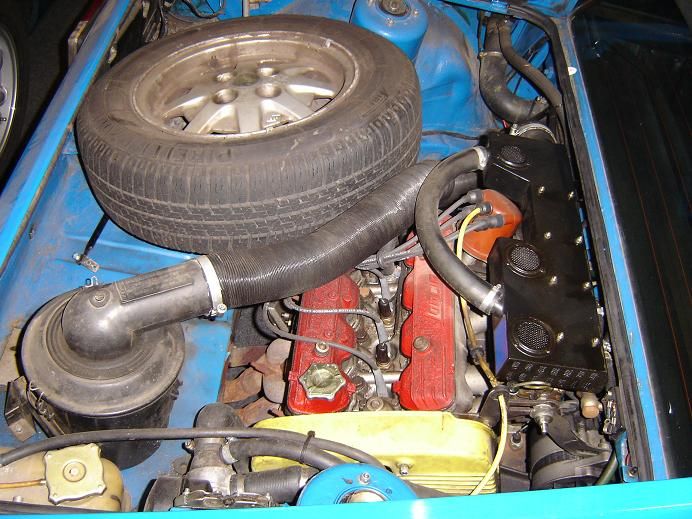

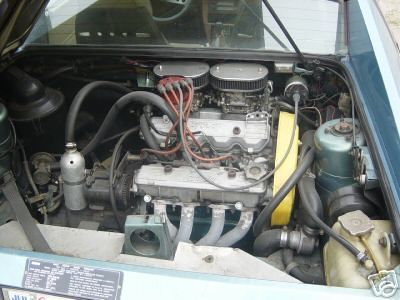

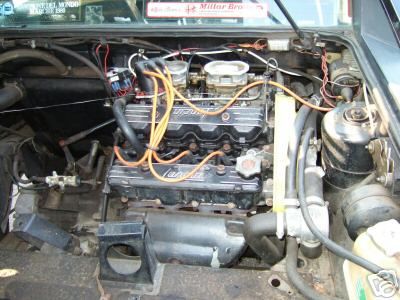

S2, #4480, 2005 S2, #5861, 2007 Scorpion  #416

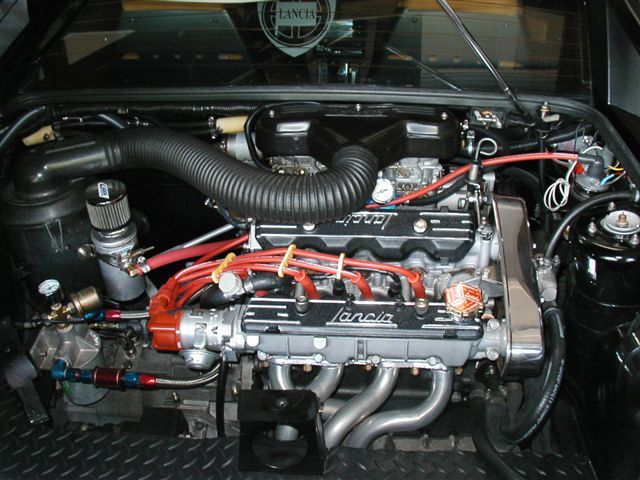

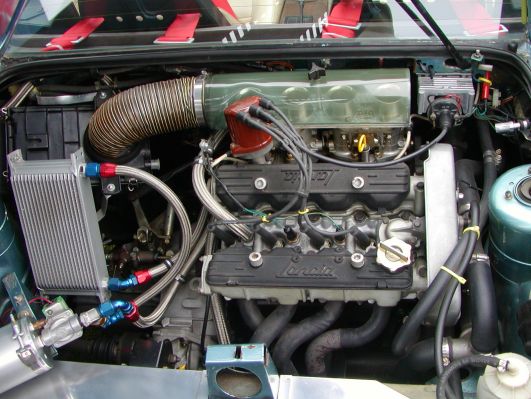

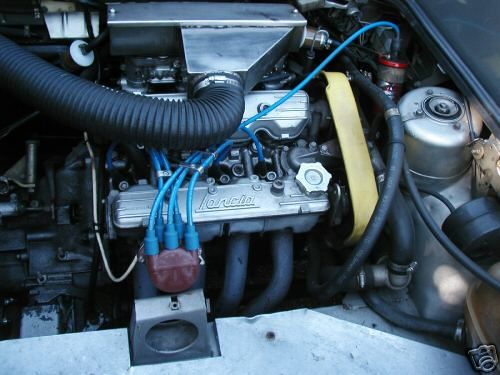

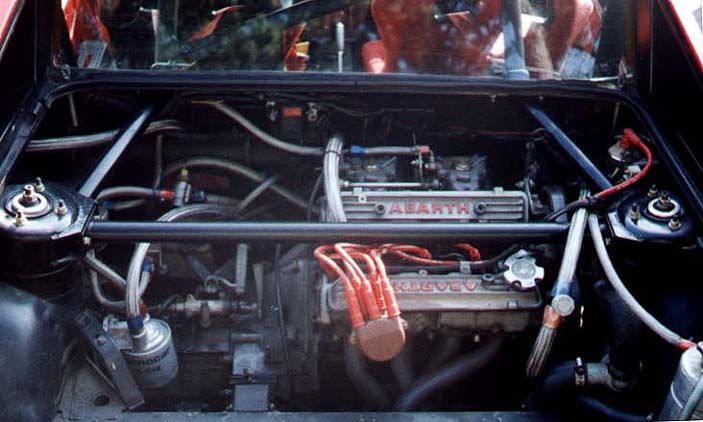

Scorpion  #1728 Scorpion  #1696, 2004 Scorpion  #711, 2006   Scorpion  #841, 2009



Index Conversions

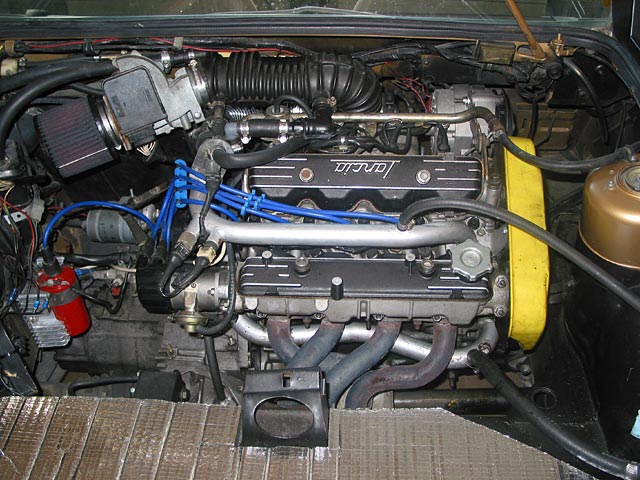

Beta EFI engine transplants

Especially for the Scorpion (1800cc), this is a nice upgrade. Mostly used in the USA is the engine of the Beta Zagato (spider) which is, in most cases, a slick fit without much modification. For Europe the engine of the Beta series 2.0 i.e. will fit. Some engine blocks do need some modification for the engine supports. Advantage is a very smooth to drive engine with a lot of torque at low rpm.

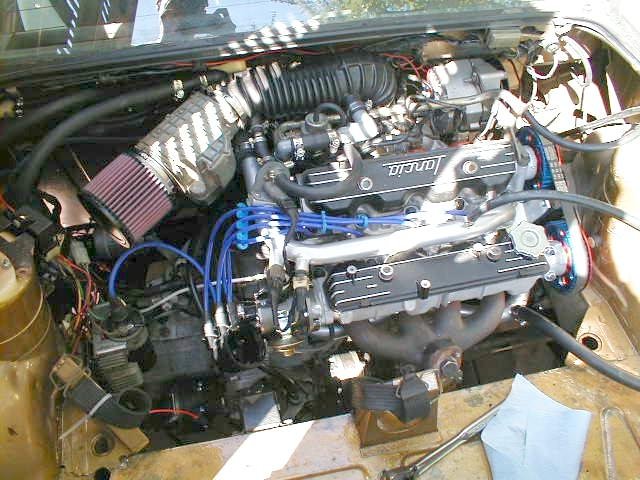

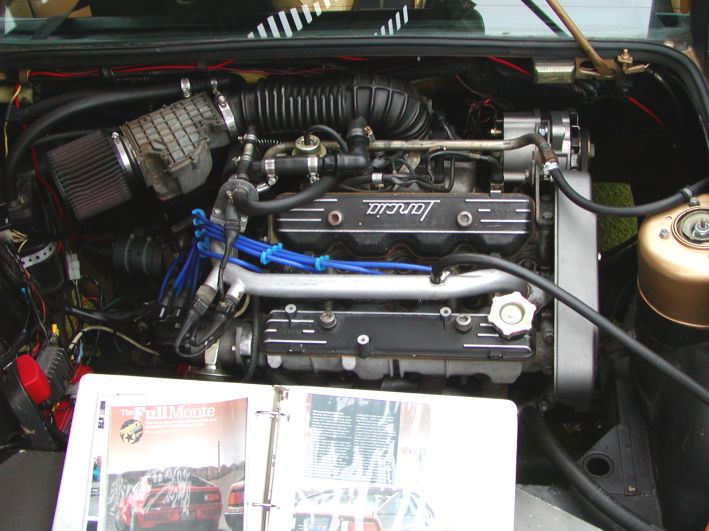

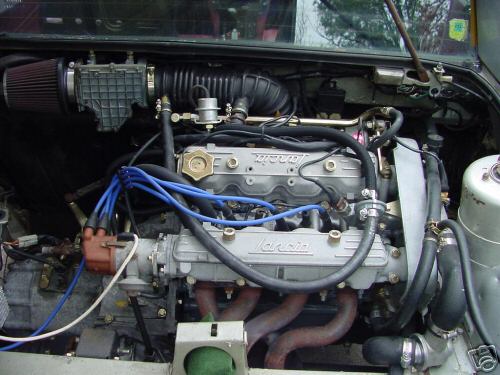

Scorpion  #1364 Scorpion  #1601   Scorpion  #1601, 2009

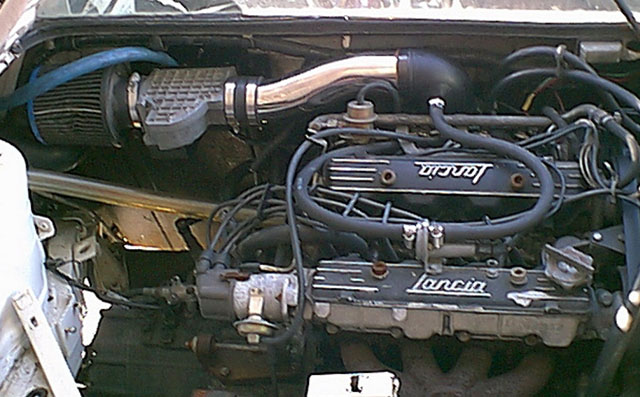

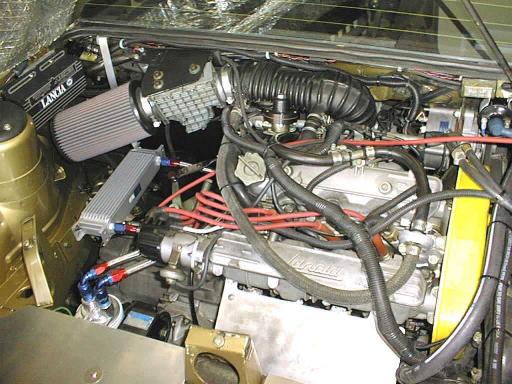

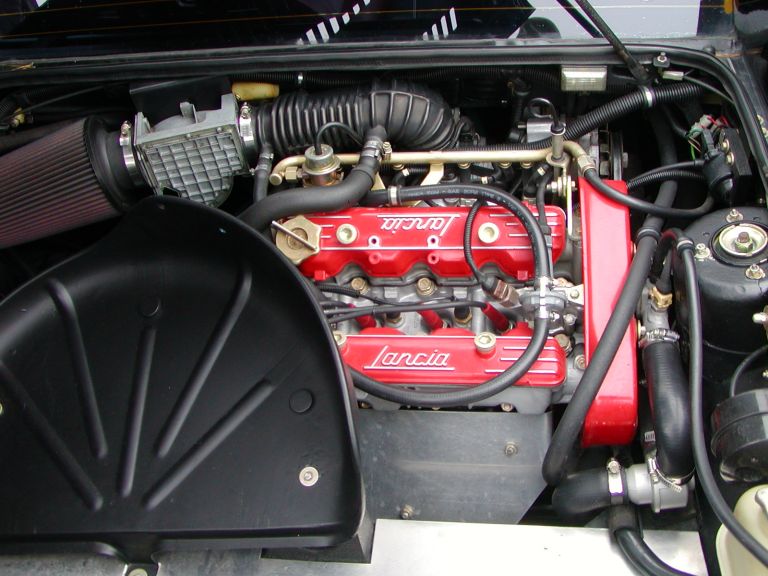

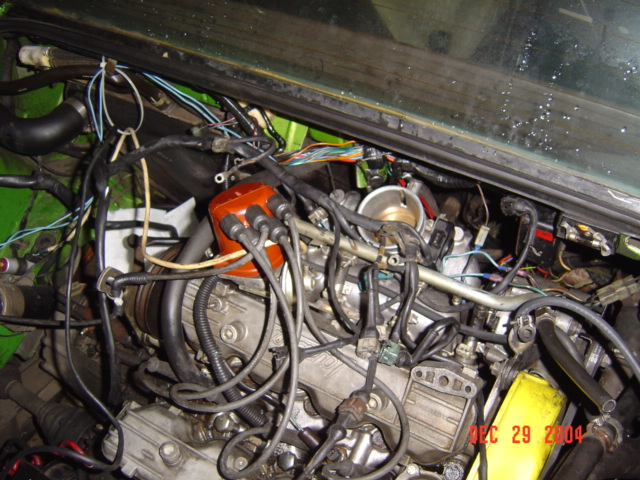

Scorpion  #1722 Scorpion  #866 Scorpion  #1330 EFI on 1.8   Scorpion  #658, 2009



Index Conversions

Beta Volumex engine transplants

Another way of getting more power is the Beta Volumex engine. Fitting requires a lot of modifying on the engine and the car, space is very tight!

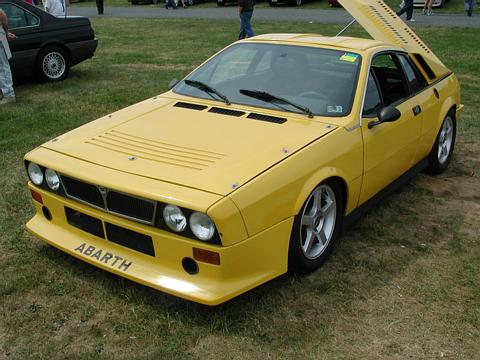

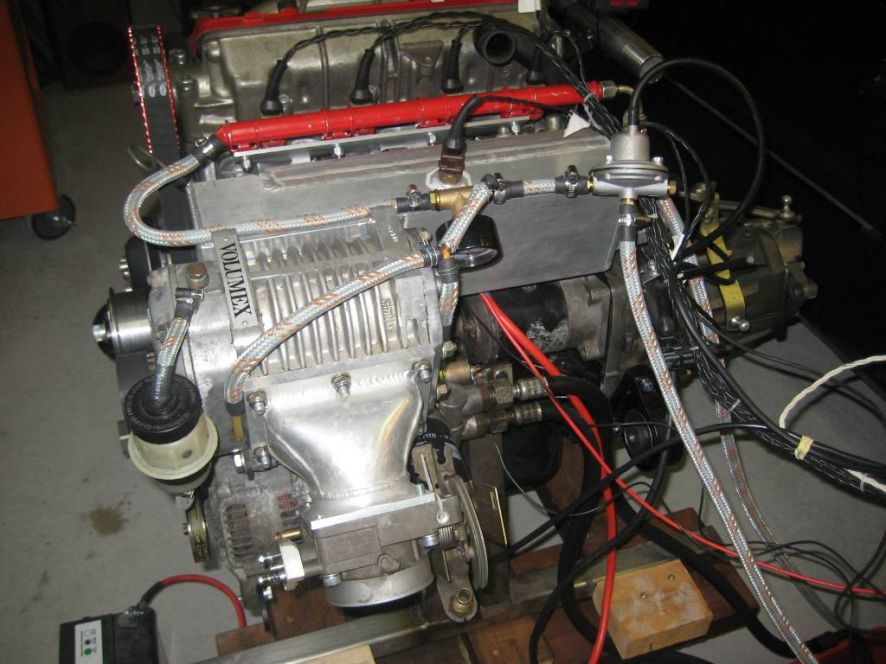

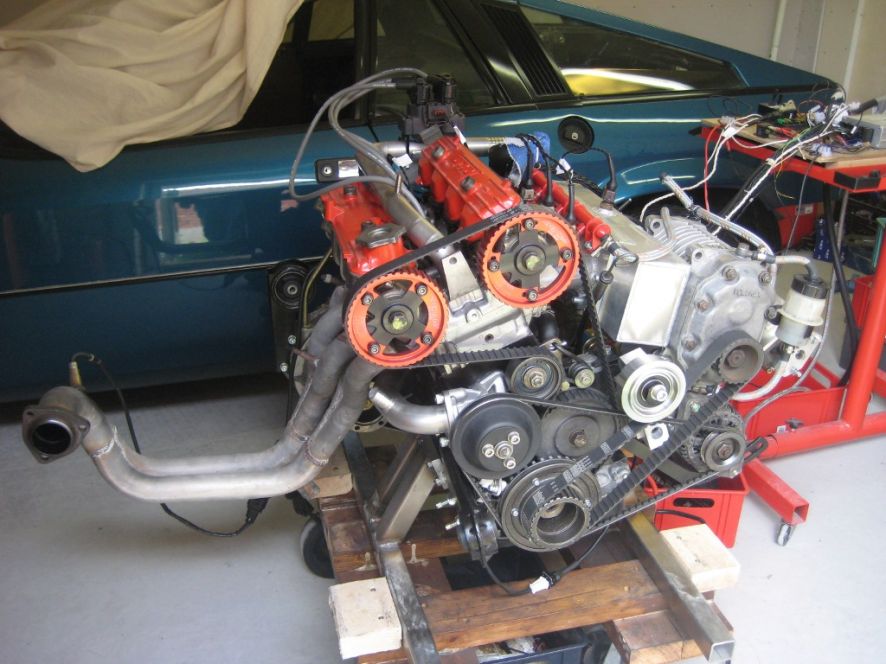

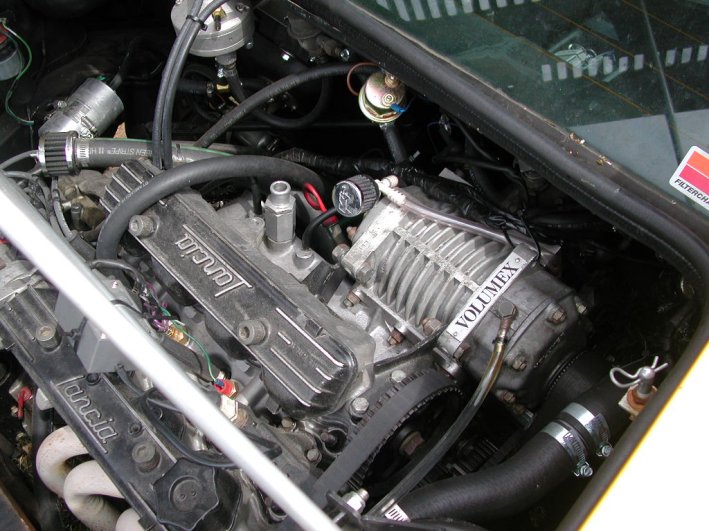

Standard VX engine Scorpion  #1534, 2002 Scorpion  #1534, 2003 Scorpion (DK)  #1463, 2009

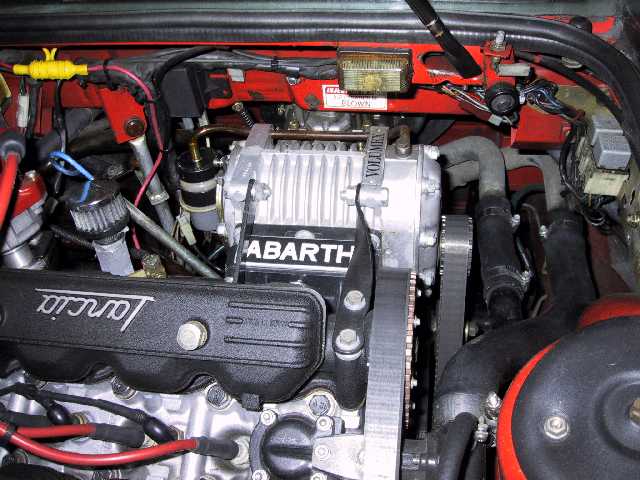

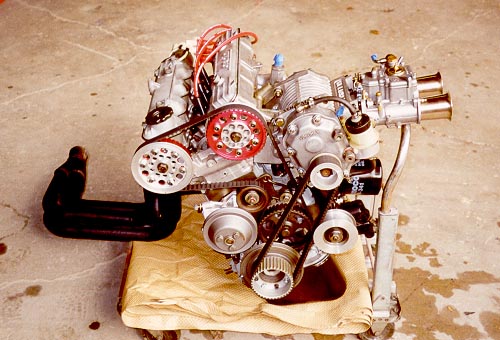

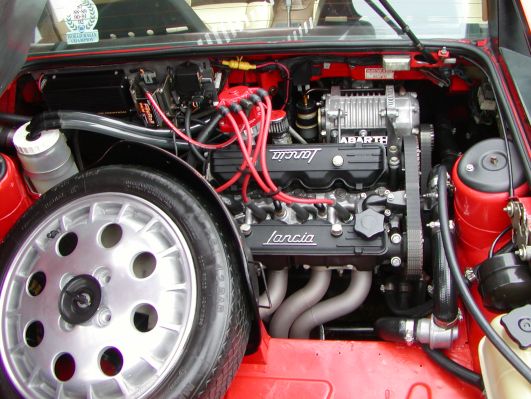

Scorpion  #1776, 2003 Scorpion  #1776, 2009 Scorpion  #398, 2001 Scorpion (DK)  #1463, 2009



Index Conversions

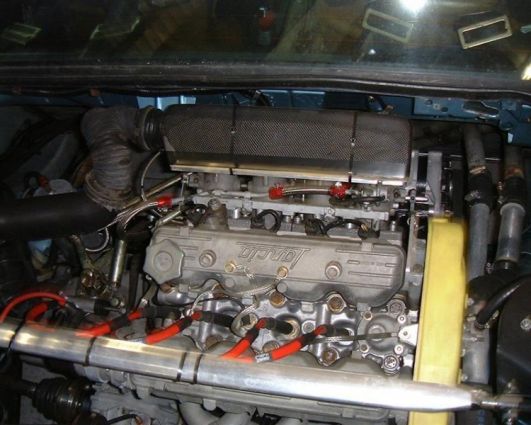

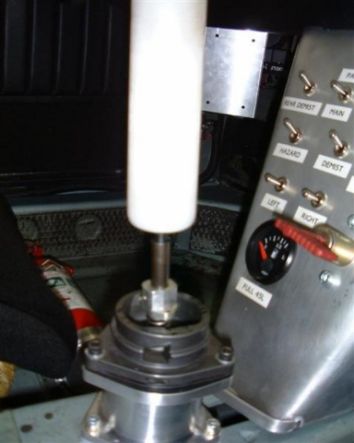

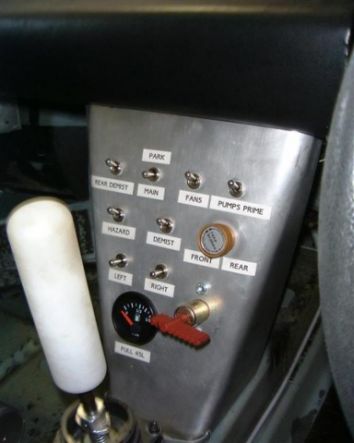

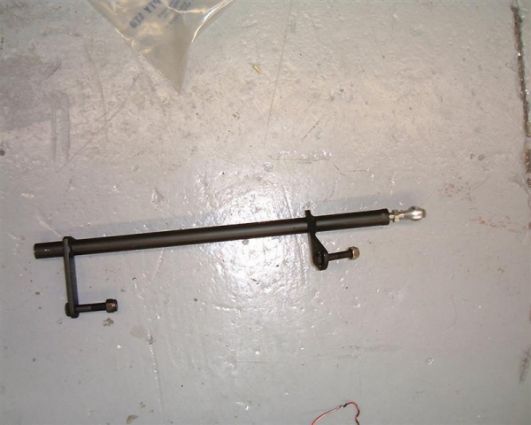

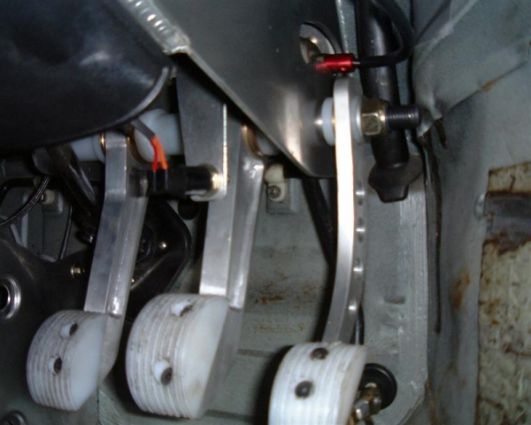

Montecarlo -  Innovations

Several innovative modifications were made by the owner (since 1994) of this original New Zealand 1981 Montecarlo. The car is since 1998 with the owner in Australia.

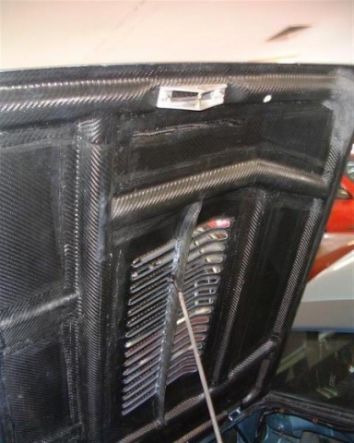

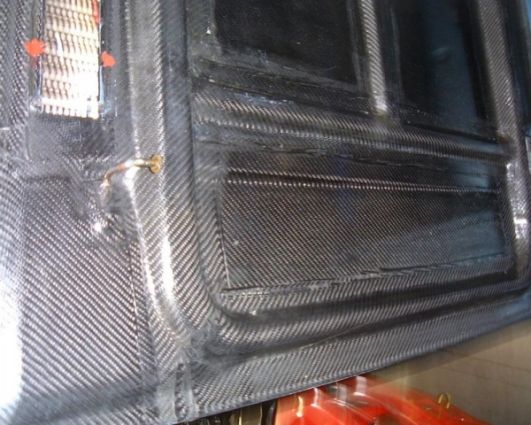

It has carbon fibre bonnet and engine cover (1.2kg each), carbon bumpers and doors in production, forged BWA rally rims, 4130 chrome molly suspension arms with rose joints everywhere, Koni struts, strut braces etc etc.

The engine is 2000cc with steel crank with NO counterweights, Abarth rods and ARP fasteners through out. Strengthened stud girdle, steel flywheel, forged pistons with custom shaped tops. Abarth head with the ports moved up ion the head for better port angle (that was a very big job) Ferrera single piece valves, springs from a combo of SB Chev and Mitsi Lancer Evo 3, titanium collets and min depth shims in the buckets with lash caps in place of original shim (all that just to make the valve train lighter and he still canít drive) The cams were ground to match the head flow and the manifold was made from 5000 series alloy tube and a set of Hilborn throttle bodies with the injector holes blanked off. The electronic injectors are Cosworth grey with an Evo 3 duel rail. ECU is Autronic with sequential fired injectors etc etc. The engine currently has the turbo off because it had a manifold pressure issue (ie blew the plenum apart) but it used to make about 300hp and eat gear boxes!

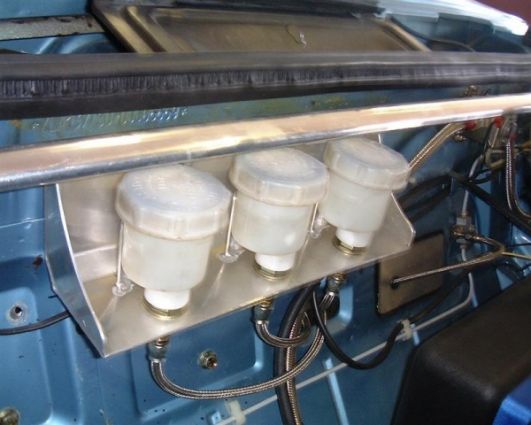

Fuel cell in front, oil cooler in front and custom rotors, hats and callipers.

In 2008 it weights 825 kg and I'm going for high 700s with carbon doors.

In other words itís a project.
